What if the most expensive component of your utility bill isn’t the energy you use, but the energy your system fails to manage? Many facility directors accept reactive power penalties as an unavoidable cost of doing business, yet these surcharges often represent a preventable drain on operational budgets. It’s a common frustration to witness rising overhead while transformer overheating and voltage instability threaten the reliability of your sensitive automation. Implementing robust industrial capacitor banks is no longer just a recommendation; it’s a requirement for maintaining the health of your LV and MV switchboards in an increasingly demanding energy market.

Mastering these engineering principles allows you to eliminate penalties and achieve a power factor near unity, typically between 0.95 and 1.0. This guide provides a strategic framework for optimizing your electrical infrastructure in 2026. We’ll explore how to reduce thermal stress on critical assets and ensure seamless integration with modern SCADA systems and PLC control systems. By the end of this article, you’ll understand how to implement a total solution that coordinates harmonic mitigation with real-time monitoring to secure long-term system longevity and infrastructure resilience.

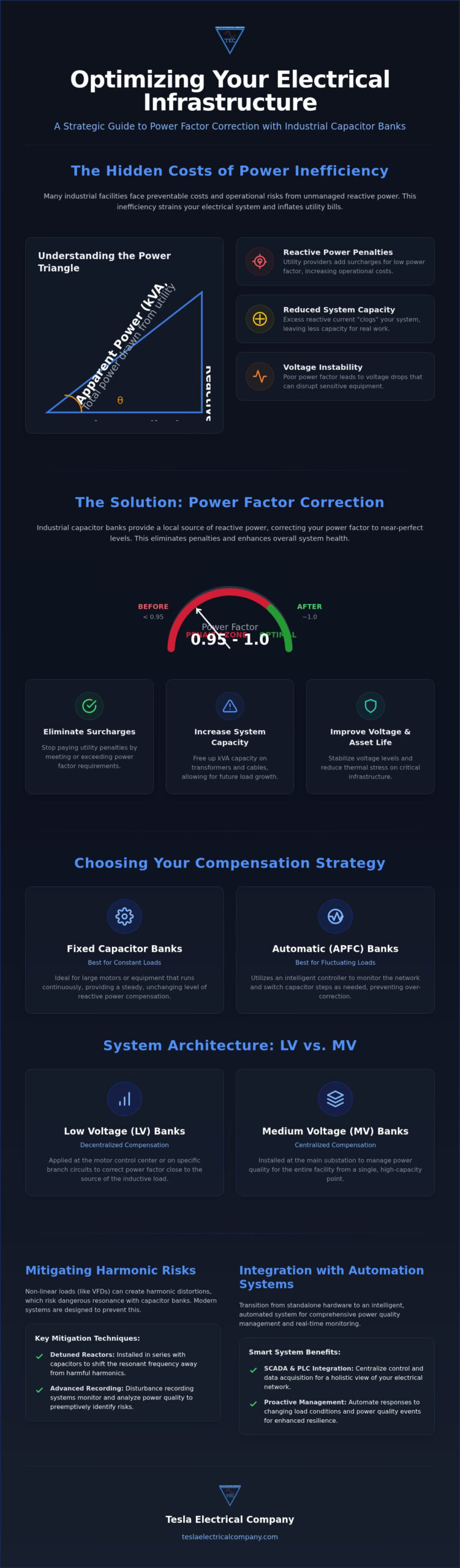

Understanding Power Factor and the Role of Industrial Capacitor Banks

Industrial power systems rely on two distinct types of electrical energy: Real Power (kW) and Reactive Power (kVAR). Real power performs the actual work, such as driving motor shafts or powering furnaces. Reactive power, however, is consumed by inductive loads like motors and transformers to establish the magnetic fields necessary for operation. While this energy is essential, drawing excessive reactive power from the utility grid creates inefficiencies. Understanding Power Factor is critical because it represents the efficiency of this energy conversion. In 2026, utility providers increasingly penalize facilities that fail to maintain a high power factor, often using kVA-based billing that charges for the total apparent power drawn. Implementing industrial capacitor banks provides a source of local reactive power, which effectively reduces the burden on the supply infrastructure. This investment addresses several economic and technical priorities:

• Elimination of reactive power surcharges on monthly utility bills
• Reduction of the total kVA demand to free up transformer capacity
• Minimization of I-squared-R losses within internal cabling
• Stabilization of voltage levels across the facility network

It isn’t just about saving money; it’s about ensuring long-term asset protection and system stability.

The kVAR Equation: Calculating Reactive Power Needs

The relationship between these power types is defined by the Power Triangle, where real power and reactive power form the legs of a right-angled triangle, and apparent power (kVA) represents the hypotenuse. As the reactive component grows, the apparent power increases, forcing electrical assets to carry more current than is strictly necessary for the work being performed. Most industrial facilities target a power factor between 0.95 and 0.98 to optimize their electrical distribution. The required compensation is determined by multiplying the active power (kW) by the difference between the tangent of the angle corresponding to the current power factor and the tangent of the angle for the target power factor.

Fixed vs. Automatic Capacitor Banks

Choosing between fixed and automatic configurations depends on the load profile of the facility. Fixed industrial capacitor banks are typically deployed for constant loads, such as large induction motors that operate for extended periods. These units provide a steady level of compensation whenever the connected equipment is active. For facilities with fluctuating demands, Automatic Power Factor Correction (APFC) systems offer a more sophisticated solution. These systems utilize an APFC controller to monitor the network in real time and switch capacitor steps in or out as needed. This systematic management ensures the system remains at the target power factor without risking overcorrection, which can lead to overvoltages or resonance issues within the MV/LV switchboards.

Technical Classifications: LV and MV Capacitor Bank Engineering

The selection between Low Voltage (LV) and Medium Voltage (MV) industrial capacitor banks depends on the facility’s architecture and the location of the inductive loads. LV systems are typically utilized for decentralized compensation at the motor control center level, where they can address specific branch circuit inefficiencies. Conversely, MV banks serve as centralized solutions, often installed at the primary intake substation to manage plant-wide power quality. Every installation must adhere to the latest IEC 61921:2026 standards, ensuring that safety, performance, and thermal stability are maintained under continuous operational stress.

A high-performance bank consists of precisely coordinated components designed for longevity. These include self-healing capacitor units, detuned reactors to mitigate Harmonic Issues, switching devices like contactors or thyristors, and advanced protection relays. This systematic assembly ensures that the equipment can handle the rigors of heavy industrial environments while providing a reliable source of reactive power.

Low Voltage (LV) System Design

Integrating Power Factor Correction (PFC) into industrial switchboard design requires careful attention to thermal management and spatial efficiency. Capacitors generate significant heat during operation, and when combined with harmonic reactors, the internal temperature of an enclosure can rise rapidly if not properly ventilated. Engineering teams must prioritize forced ventilation and modular step sizing to allow for future scalability. This approach ensures that individual capacitor stages can be replaced or expanded without redesigning the entire distribution frame. If you’re planning a facility upgrade, consulting an expert on customized capacitor bank solutions ensures your infrastructure remains resilient and efficient.

Medium Voltage (MV) Infrastructure Requirements

Medium voltage industrial capacitor banks demand a high level of engineering rigor, primarily due to the high energy levels involved during switching operations. Inrush current management is a critical concern; engineers utilize specialized vacuum contactors and current-limiting reactors to prevent transient disturbances that could damage sensitive downstream equipment. Protection relay coordination is equally vital in these setups. In MV capacitor strings, relays must detect unbalance, overcurrent, and overvoltage conditions with high precision to prevent catastrophic component failure. Using a total solution approach ensures that these MV assets are fully integrated into the broader substation automation framework, providing a steady hand for complex power management.

Mitigating Risks: Harmonics and Disturbance Recording

Installing industrial capacitor banks without a thorough analysis of the facility’s harmonic profile introduces a significant risk of harmonic resonance. In modern industrial environments, non-linear loads such as variable frequency drives (VFDs) and LED lighting systems inject high-frequency currents into the electrical network. When the capacitive reactance of a bank matches the inductive reactance of the system, harmonic currents are amplified rather than suppressed. This resonance leads to severe overheating, dielectric stress, and the eventual catastrophic failure of capacitor cells and upstream transformers. A technical analysis of power factor correction reveals that resonance often occurs at frequencies dictated by the system’s short-circuit capacity, making precise engineering coordination a necessity for every installation.

Adhering to Total Harmonic Distortion (THD) limits is essential for safe operation. Standard guidelines typically suggest that voltage THD should remain below 5% to prevent equipment degradation. If the non-linear load exceeds 20 to 30 percent of the total facility demand, standard capacitors are no longer sufficient. These environments require a total solution that incorporates harmonic mitigation as a core design principle.

Detuned vs. Tuned Harmonic Filters

Engineers protect industrial capacitor banks by installing detuned filter reactors in series with the capacitor units. These reactors, typically rated at 7% or 14% impedance, shift the resonance frequency of the LC circuit below the lowest dominant harmonic, such as the 5th harmonic (250Hz in 50Hz systems). This prevents the bank from acting as a sink for harmonic currents generated elsewhere in the plant. While tuned filters are designed to eliminate specific harmonic orders, they require precise site data and are more susceptible to system changes. Detuned reactors are the industrial standard for general PFC because they prevent the capacitor bank from absorbing harmonic currents while shifting the resonance frequency below the lowest dominant harmonic order.

Disturbance Recording and Power Quality Monitoring

The integration of power quality and disturbance recording systems provides a steady hand for facility management. These systems capture real-time data on voltage dips, current spikes, and transient disturbances that standard meters often miss. By analyzing this data, maintenance teams can identify failing capacitor cells before a rupture occurs and adjust APFC controller parameters to match shifting load profiles. This proactive oversight ensures that the power factor correction system contributes to overall infrastructure resilience rather than becoming a point of failure. In the context of 2026 operations, where AI-driven demand and increased grid volatility are common, this level of technical transparency is indispensable for maintaining high standards of excellence.

Integration with SCADA and Automation Systems

Modern industrial capacitor banks are no longer isolated hardware components. They function as intelligent nodes within a facility’s digital nervous system. By utilizing standard communication protocols such as Modbus, Profibus, and the high-speed IEC 61850 standard for substation automation, these systems provide granular visibility into power quality metrics. Centralizing this data within SCADA and automation system solutions allows operators to monitor real-time power factor, voltage levels, and harmonic distortion from a unified interface. This connectivity enables automated alerts for critical events, such as step failures, over-temperature conditions, or fuse operations. It ensures that technical issues are addressed before they impact production or cause collateral damage to the MV/LV switchboards.

Achieving a power factor near unity requires precise coordination between the compensation system and the facility’s shifting load profile. In the 2026 industrial landscape, the integration of power quality data with broader industrial energy management systems is a fundamental requirement for operational excellence. It allows for a holistic view of energy consumption, where reactive power management is treated as a strategic asset rather than a utility burden.

PLC Logic for Dynamic Load Management

Interfacing APFC controllers with process PLC systems allows for sophisticated load-shedding strategies during peak demand periods. This is particularly vital when operating on backup power. Industrial capacitor banks must be managed with extreme care during generator operation to avoid leading power factors that can cause excitation instability. PLC logic ensures that banks are automatically disconnected during low-load idling or when the generator’s voltage regulator cannot safely manage the capacitive load. This level of automation prevents overvoltage transients that often occur during sudden load rejections, protecting sensitive automation equipment from electrical stress.

Predictive Maintenance through Data Acquisition

Data serves as the foundation for long-term system reliability and infrastructure resilience. By tracking the cumulative number of switching operations per capacitor step, maintenance teams can anticipate the end of contactor life cycles and schedule replacements during planned outages. Monitoring the actual kVAR output against the nameplate capacity provides a clear indicator of dielectric aging within the capacitor cells. When a cell loses more than 10% of its rated capacity, it signals an impending failure. Visualizing these power quality trends on SCADA dashboards transforms reactive maintenance into a proactive, data-driven strategy. You can identify a failing cell months before it reaches a critical state, preventing unplanned downtime. If you require expert assistance in designing these integrated systems, explore our SCADA and automation systems to secure your industrial infrastructure.

Asset Life Extension: Retrofitting and Modernization

Replacing aging electrical infrastructure doesn’t always require a complete demolition and rebuild of the existing distribution network. In many industrial settings, the steel enclosures and busbar systems of legacy switchgear remain structurally sound, while the internal compensation components have reached the end of their reliable service life. Retrofitting industrial capacitor banks offers a more sustainable and cost-effective alternative to full replacement. This process involves the systematic removal of degraded components and the installation of modern, high-efficiency modules within the original footprint. By upgrading protection relays and utilizing circuit breaker retrofit services alongside these PFC improvements, facilities can achieve a total modernization of their power quality assets with minimal operational downtime.

Tesla Electrical Company employs a methodical approach to asset life extension. This strategy ensures that every retrofitted system meets contemporary safety standards while delivering the precision required for 2026 energy demands. It’s a commitment to high standards that allows legacy facilities to compete with modern, purpose-built plants.

Retrofitting Legacy Capacitor Banks

The transition from legacy technology to modern standards typically begins with the replacement of hazardous oil-filled capacitors. These older units are prone to leaking and lack the safety features of modern dry-type, self-healing alternatives. Modern modules are equipped with internal overpressure disconnectors that prevent casing rupture during a fault. Additionally, legacy mechanical contactors are often replaced with thyristor-based switching modules. These solid-state devices are essential for managing rapid load fluctuations without the mechanical wear associated with traditional contactors. Integrating these upgrades into a wider facility plan, such as through breaker life extension services, provides a holistic modernization strategy that secures the entire power path from the intake substation to the final load.

Commissioning and Performance Validation

Rigorous validation is the final stage of any modernization project. Pre-commissioning begins with precise capacitance measurements and insulation resistance testing to ensure the integrity of the new installation. Once energized, engineers conduct comprehensive power quality audits to verify the actual kVAR impact on the system and confirm that the target power factor is being maintained across all load steps. The process concludes with final documentation and the mapping of all new data points into the facility’s SCADA system. This ensures that the modernized industrial capacitor banks are fully visible to operators, providing a steady hand for future energy management and ensuring the continued success of the facility’s electrical infrastructure.

Securing Your Industrial Energy Future

Maintaining a power factor near unity is no longer just a financial preference; it’s a fundamental requirement for operational stability in 2026. By deploying advanced industrial capacitor banks, facilities can eliminate reactive power penalties while significantly reducing thermal stress on transformers and switchgear. Success depends on a total solution approach that balances precise harmonic coordination with seamless SCADA integration and real-time disturbance recording. Whether you’re designing a new medium voltage substation or modernizing legacy frames, prioritizing these engineering principles ensures your infrastructure remains resilient against evolving grid demands.

Tesla Electrical Company provides the steady hand needed for complex infrastructure projects. As specialists in generator synchronizing and redundant systems, we offer expert retrofit services for ABB and Schneider switchgear alongside comprehensive industrial automation and SCADA integration. We’re committed to the long-term success of our partners through high standards of excellence and methodical execution. Contact Tesla Electrical Company for a Professional Power Quality Audit and Capacitor Bank Solution to secure your facility’s electrical future today.

Frequently Asked Questions

What is the difference between a fixed and an automatic capacitor bank?

Fixed banks provide a constant level of reactive power compensation and are typically connected directly to steady loads like large induction motors. Automatic Power Factor Correction (APFC) systems use an intelligent controller to switch capacitor steps in or out based on real-time demand. This prevents overcorrection during low-load periods, which is a common risk in facilities with variable production cycles or shifting operational requirements.

How do I calculate the kVAR required for my industrial facility?

Calculating required kVAR involves determining the difference between your current power factor and your target, which is typically 0.95 or higher. You multiply the facility’s active power in kilowatts by the difference in the tangents of the power factor angles. For accurate results, engineers analyze utility billing data or use a Power Quality and Disturbance Recording System to capture peak and average demand profiles over a specific operational period.

Can capacitor banks damage my electrical system through harmonic resonance?

Yes, industrial capacitor banks can inadvertently create a resonance circuit with system inductance if harmonics aren’t properly mitigated. This occurs when non-linear loads like VFDs inject high-frequency currents that match the bank’s resonant frequency. The resulting current amplification leads to dielectric stress, capacitor rupture, and severe overheating in transformers. Installing detuned reactors is the industry standard for preventing these catastrophic resonance events and ensuring system longevity.

Why is my utility company penalizing me for a low power factor?

Utilities penalize low power factor because reactive power consumes grid capacity without performing useful work. This inefficiency forces the provider to install larger cables and transformers to handle the total apparent power, even if the real power used remains low. By applying surcharges, utilities encourage industrial consumers to install local compensation, which reduces the overall burden on the national distribution network and improves general grid stability.

How often should industrial capacitor banks be inspected and maintained?

Industrial systems require a comprehensive inspection at least every six to twelve months to ensure operational reliability. Maintenance teams should perform thermal imaging to detect hot spots, measure individual step capacitance, and verify the functionality of switching contactors. Regular audits prevent unplanned downtime and allow for the early identification of aging cells before they fail. In high-dust or high-temperature environments, quarterly inspections are often necessary to maintain excellence.

Is it possible to retrofit a capacitor bank into an existing LV switchboard?

It’s entirely possible to integrate industrial capacitor banks into existing LV switchboard frames through professional retrofit services. This process involves utilizing spare cubicles or modifying internal busbars to accommodate new capacitor modules and protection relays. Retrofitting is a strategic choice for facility managers who wish to modernize their power quality management without the logistical complexity and high cost associated with a complete switchgear replacement.

What is the typical lifespan of a modern dry-type industrial capacitor?

Modern dry-type, self-healing capacitors typically offer an operational lifespan of 100,000 to 150,000 hours under standard conditions. This longevity depends heavily on the ambient temperature and the presence of harmonic distortion. While these units are designed for durability, their dielectric properties naturally degrade over time. Monitoring kVAR output through a SCADA system allows maintenance teams to track this degradation and plan replacements before the end of the asset’s functional life.

Should capacitor banks be used when running on a standby generator?

Capacitor banks should be managed with extreme caution when a facility is running on a standby generator. Most generators aren’t designed to handle leading power factors, which can cause voltage regulator instability and excitation failure. It’s standard practice to use PLC control systems to automatically disconnect the banks or limit compensation steps when the system detects a transition to generator power to prevent damaging overvoltage transients and protect the alternator.
